Full Electric Walkie Stacker 3300lbs Capacity (Straddle Legs. 98" lifting)

The Full Electric Walkie Stacker

Dimensions

• Overall Length: 70"
• Recommended Aisle Width: 89.7"
• Turning Radius: 58.6"
• Mast Height (Lowered): 74.6"
• Mast Height (Raised): 122"
• Load Center: 23.6"
• Ground Clearance: 1.38"

Motor Specifications

• Drive Motor: 650-watt
• Lift Motor: 2,200-watt
• Forks: Adjustable to fit most pallets
• Controller: Curtis (US Brand)
• Battery: GEL, maintenance-free

Operational Features

• Lifting and lowering operation buttons on both sides
• Multi-function display: Shows working hours, battery status, and low-voltage protection

The Best Choice for Narrow Sites

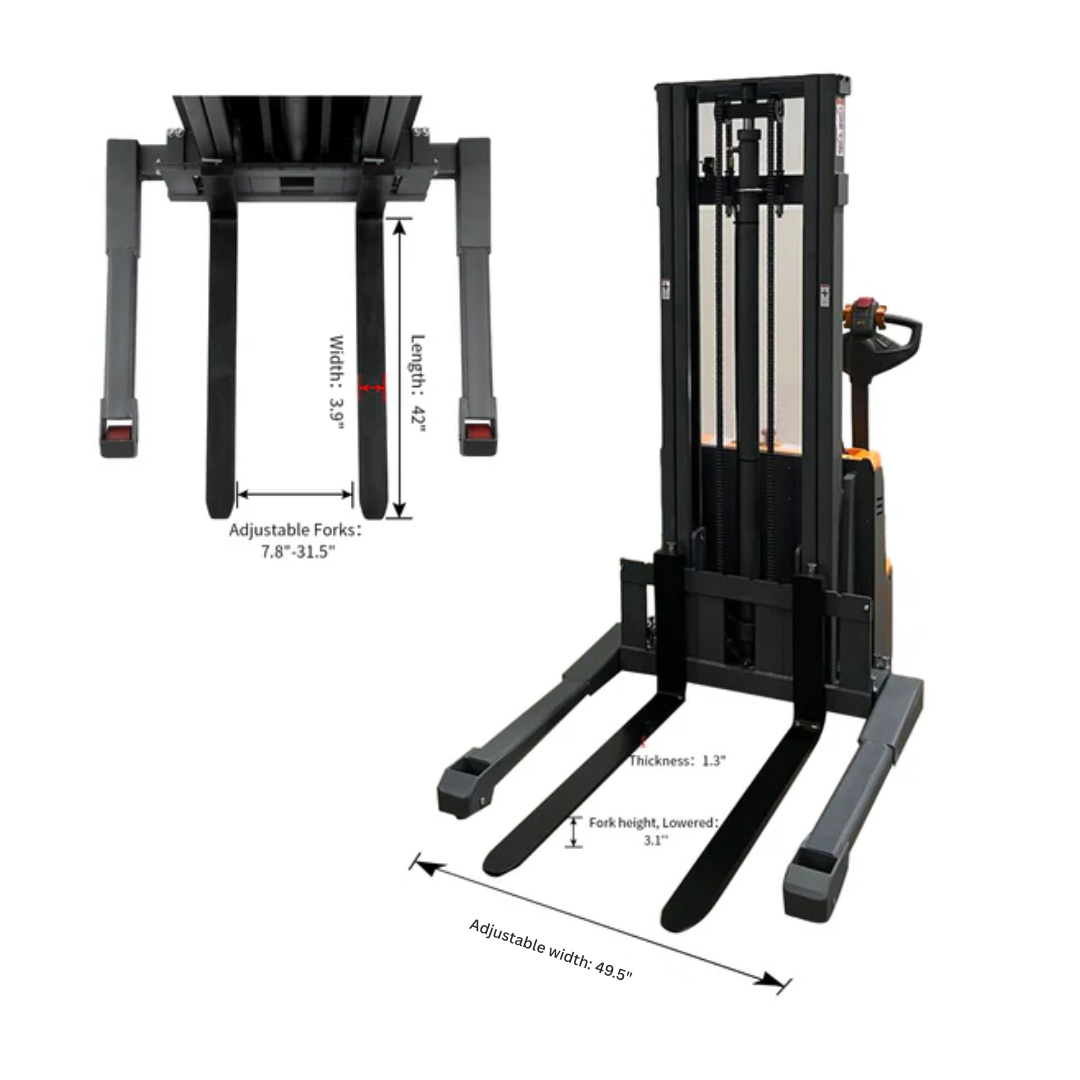

Forks

• Fork Height (Lowered): 3.15"
• Adjustable Fork Range: 7.8" - 31.5"
• Thickness: 1.3"
• Width: 3.9"
• Length: 42"

Straddle Legs

• Height: 4.7"
• Adjustable Range: 44" - 60"

Speed

• Travel Speed (Laden/Unladen): 2.8/3.1 mph
• Lifting Speed (Laden/Unladen): 3.1/4.3 inch/s
• Lowering Speed (Laden/Unladen): 4.7/3.9 inch/s

Features

• Smooth rolling polyurethane wheels
• 180° steering arc
• 110V built-in charger
• 6 hours of service per charge (two 12-volt, 125Ah rechargeable GEL batteries)
