Full Electric Walkie Stacker 3300lbs Cap. (Fixed Legs. 118" Lifting)

The Full Electric Walkie Stacker (Fixed Legs)

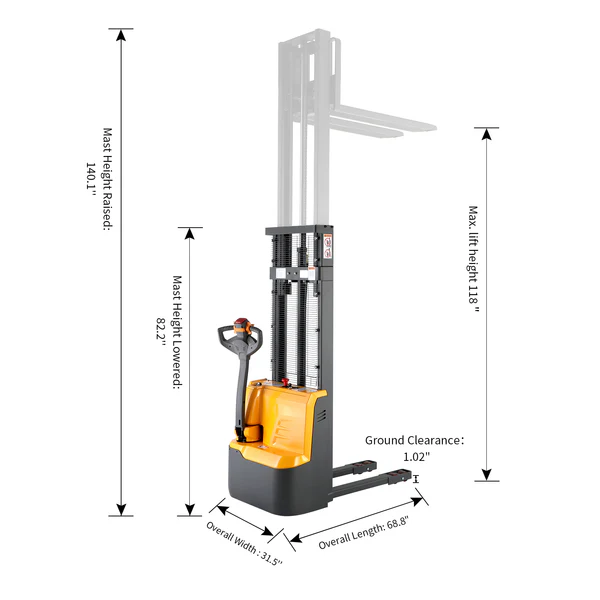

Dimensions

• Overall Length: 68.8"
• Overall Width: 31.5"
• Recommended Aisle Width: 87.3"
• Turning Radius: 53.7"
• Mast Height (Lowered): 82.2"
• Mast Height (Raised): 140.1"

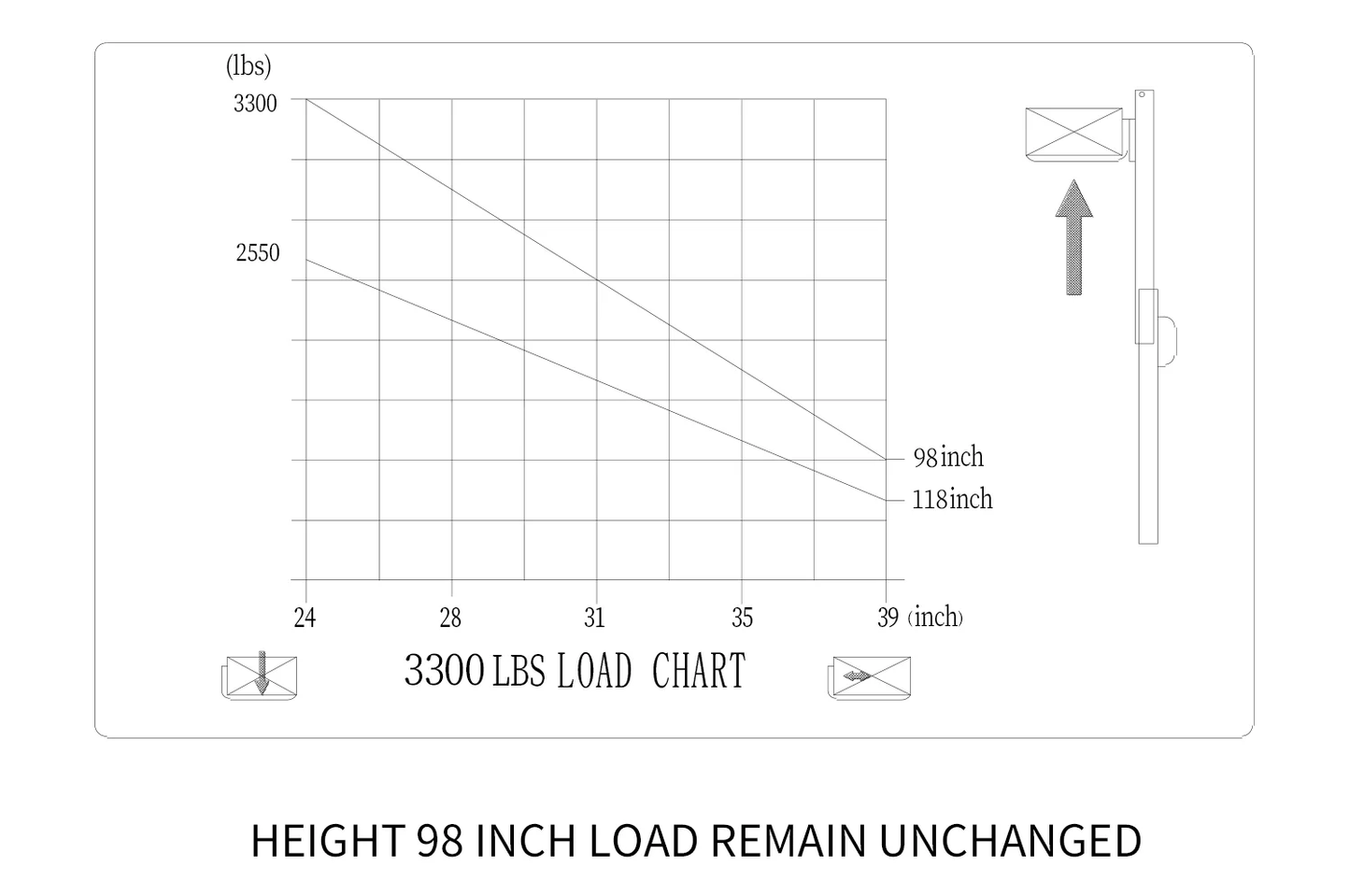

• Load Center: 23.6"

Motor Specifications

• Drive Motor: 650-watt
• Lift Motor: 2,200-watt
• Controller: Curtis (US Brand)
• Battery: GEL, maintenance-free

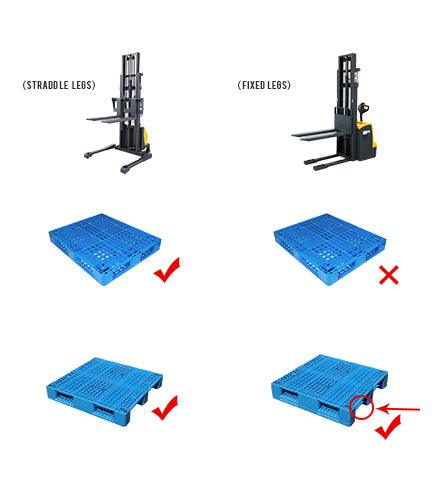

• Forks: Fixed forks suited for EU-type pallets

Operational Features

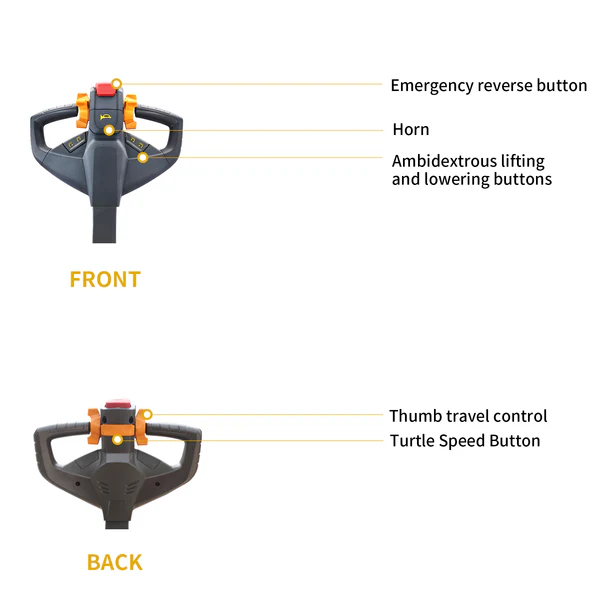

• Lifting and lowering operation buttons on both sides
• Red Dot and IF Design Award Winner
• The Best Choice for Narrow Sites

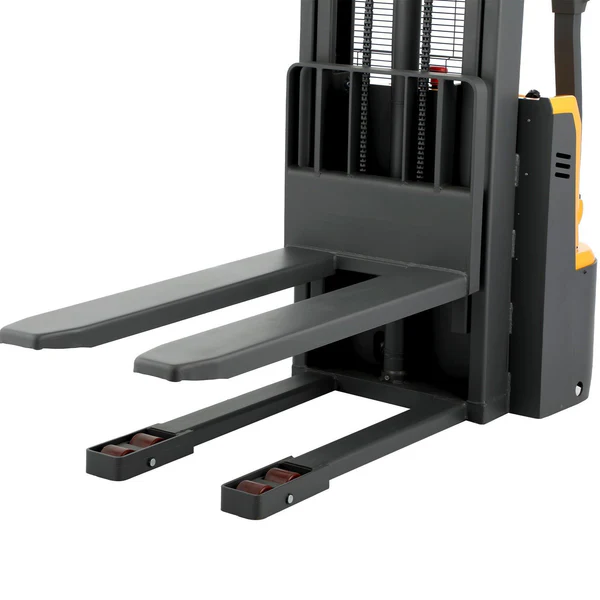

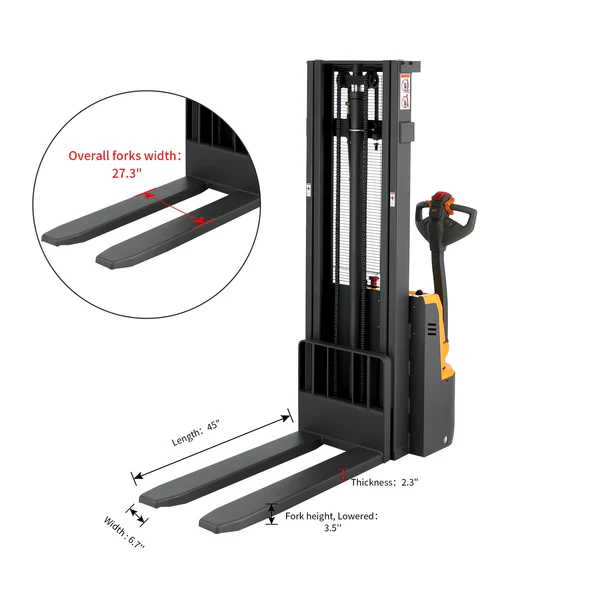

Forks

• Fork Height (Lowered): 3.5"
• Thickness: 2.3"
• Single Fork Width: 6.7"
• Overall Fork Width: 27.3"
• Length: 45"

Speed

• Travel Speed (Laden/Unladen): 2.8/3.1 mph
• Lifting Speed (Laden/Unladen): 4.3/5.5 inch/s
• Lowering Speed (Laden/Unladen): 4.7/3.9 inch/s

Features

• Smooth rolling polyurethane wheels
• 180° steering arc
• 110V built-in charger
• 6 hours of service per charge (two 12-volt, 125Ah rechargeable GEL batteries)
