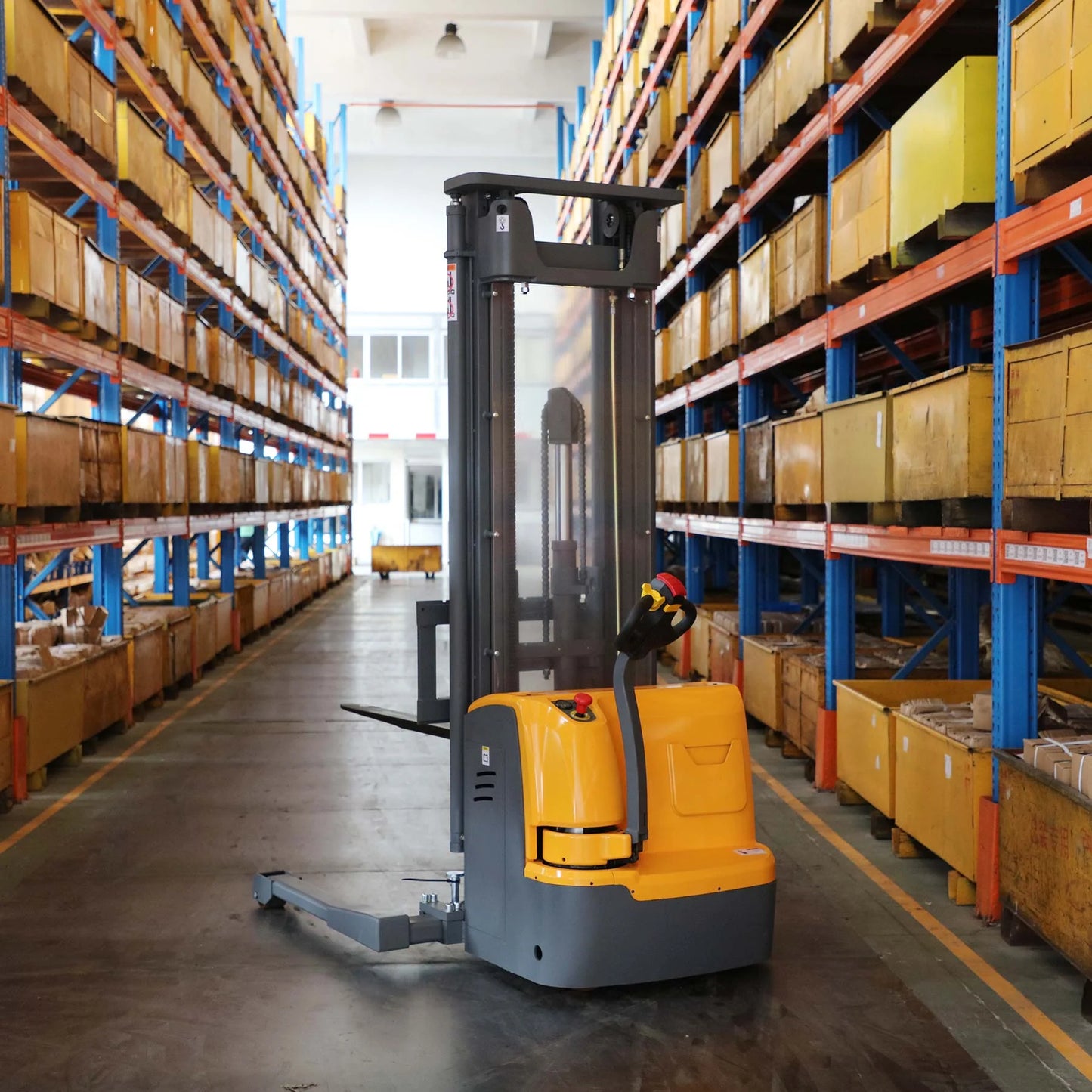

Full Electric Walkie Stacker 3300 lbs Capacity (Straddle Legs 177" Lifting aka Triple Mast) SKU: AL-3029

Specifications and Features

Powerful Motors for Performance

• Drive Motor: 1,200 watts
• Lift Motor: 2,200 watts
• Advanced AC control system with stepless speed control for smooth operation

Adjustable Forks

• Designed to fit most pallet sizes
• Built with a German-brand handle tiller for precision control

Curtis Controller

• Reliable performance with the famous Curtis (US brand) controller

Multi-Function Display

• Displays working hours, battery status, and low-voltage protection

Dimensions

• Overall Length: 82.5 inches
• Overall Width: 46.5–62.3 inches
• Recommended Aisle Width: 98.4 inches
• Turning Radius: 65.1 inches
• Load Center: 23.6 inches

Mast Specifications

• Height (Lowered): 83.5 inches
• Max Lifting Height: 177 inches
• Height (Raised): 199.2 inches
• Free Lifting Height: 61.8 inches

Fork Dimensions

• Thickness: 1.3 inches
• Width: 3.9 inches
• Length: 42 inches
• Adjustable Range: 7.8–31.5 inches
• Lowered Height: 2.8 inches

Speed

• Travel Speed (Laden/Unladen): 3.6 / 3.7 mph
• Lifting Speed (Laden/Unladen): 3.5 / 6.3 inches per second
• Lowering Speed (Laden/Unladen): 5.9 / 6.3 inches per second

Key Features

• Lifting Capacity: 1,760 lbs at 177 inches
• Gradeability: 6% (laden) / 15% (unladen)
• Battery: Strong lead-acid battery (24V / 200AH) for 8 hours of service per charge
• Charging Time: 8–10 hours; plugs into standard 110–120V outlets
• Long Handle Design: Ensures light and flexible steering
• Vertical Driving Wheel: Improves driving efficiency, installation, and maintenance
• Safety Features: Emergency stop switch and electricity lock button

Additional Information

• Environment: Best suited for flat ground; avoid uneven surfaces or steep ramps
• Temperature Range: Operates between -13°F and +104°F
• Battery Maintenance: Fully charge before use to avoid damage; charge monthly even when not in use
